G280-IL High Precision Linear Stage

The G280-IL is the largest stage in the ironless range, with a 280 mm width, travels from 100 mm up to 1200 mm and a 185 kg payload capacity. A high performance ironless linear motor delivers 240 N continuous force and speeds to 2 m/s, giving smooth, cog-free motion for heavier payload applications in laser processing, inspection and precision scanning.

Product Overview

Motion Type	Linear
Technology	Ironless
Product Range	Precision Linear Stages
Series	G280

Key Performance Specs

Minimum Travel: 100 mm
Maximum Travel: 1200 mm
Continuous Force: 240 mm
Maximum Speed: 2 m/s
Maximum Payload: 184 kg

Key Features

Width 280 mm
Travels 100 mm to 1200 mm
High load capacity 185 kg
Speed 2 m/s
Continuous force 240 N
High resolution absolute linear encoder
Side cover to protect against particles
High performance ironless linear motor

Request a Quote

G280-IL High Precision Linear Stage

Positioning Linear Stage

The G280-IL is a high precision linear stage engineered to perform in demanding industrial conditions across a wide range of sectors. Exceptional stiffness and high quality components, including ironless linear motors, heavy duty recirculating ball bearing guides and precision absolute linear encoders, give the series a clear performance advantage. G280-IL stages are optimised with high precision, non-contact absolute linear encoders, protected from debris by the stage sealing system. Precision recirculating linear bearings, combined with careful machining and assembly, deliver excellent geometric performance. The result is a stage offering precision, durability and reliability for industrial applications.

Ironless Linear Motor

Travel Max mm 1200 Force N 240 Speed Max m/s 2 Payload Max kg 184 Price Band POA Torque Max Nm Speed Max rpm Outside Diameter mm Inside Diameter mm X Travel mm Y Travel mm Z Travel mm Move up Move down Show or hide panel Product Subtitle High precision ironless linear positioning stage, 280 mm width Key Features Add Media Add FormVisualText

Width 280 mm
Travels 100 mm to 1200 mm
High load capacity 185 kg
Speed 2 m/s
Continuous force 240 N
High resolution absolute linear encoder
Side cover to protect against particles
High performance ironless linear motor

Specifications Add Media Add FormVisualText

G280 Series	G280-IL-x-100	G280-IL-x-150	G280-IL-x-200	G280-IL-x-250	G280-IL-x-300
Travel total (mm)	100	150	200	250	300
Position Accuracy uncalibrated (µm typ)	±4	±6	±8	±9	±10
Position Accuracy calibrated (µm)	±1	±1	±1	±1	±1
Resolution System (nm)	5	5	5	5	5
Repeatability Bi-directional (µm)	±0.3	±0.4	±0.4	±0.4	±0.4
Flatness / Straightness (µm)	±2	±2.5	±2.5	±3	±3
Yaw, Pitch & Roll (µrad)	±25	±30	±35	±40	±45
Maximum Velocity No Load (mm/s)	2000	2000	2000	2000	2000
Maximum Acceleration (m/s²)	30	30	30	30	30
Nominal Force (N)	240	240	240	240	240
Peak Force (N)	1230	1230	1230	1230	1230
Load Capacity (kg)	185	185	185	185	185
Stage Weight (kg)	30.5	35.7	40.9	46.1	51.3

G280 Series	G280-IL-x-400	G280-IL-x-500	G280-IL-x-600	G280-IL-x-800	G280-IL-x-1000
Travel total (mm)	400	500	600	800	1000
Position Accuracy uncalibrated (µm typ)	±12	±14	±15.5	±17	±18
Position Accuracy calibrated (µm)	±1	±1	±1	±1.5	±1.5
Resolution System (nm)	5	5	5	5	5
Repeatability Bi-directional (µm)	±0.4	±0.4	±0.4	±0.5	±0.5
Flatness / Straightness (µm)	±4	±5	±6	±8	±9
Yaw, Pitch & Roll (µrad)	±55	±65	±75	±85	±90
Maximum Velocity No Load (mm/s)	2000	2000	2000	2000	2000
Maximum Acceleration (m/s²)	30	30	30	30	30
Nominal Force (N)	240	240	240	240	240
Peak Force (N)	1230	1230	1230	1230	1230
Load Capacity (kg)	185	185	185	185	185
Stage Weight (kg)	56.5	61.8	67	77.6	88.1

G280 Encoder Feedback Options	Feedback (F1) Absolute	(F1) Signal Period	Feedback (F2) Incremental	(F2) Signal Period	In Position Stability
E1 BISS-C Absolute, Single Track	BISS-C	5 nm			±1 µm
E2 BISS-C Absolute, Single Track	BISS-C	1 nm			±0.5 µm
E3 Incremental 1 Vpp, Single Track			1 Vpp	20 µm	±0.5 nm
E4 Incremental 1 Vpp, Single Track			1 Vpp	4 µm	< 0.5 nm
E5 EnDat 2.2 Absolute, Single Track	EnDat 2.2	10 nm			±1 µm
E6 SSI Absolute, Single Track	SSI	10 nm			±1 µm
E7 HIPERFACE Absolute, Single Track	HIPERFACE	10 nm			±1 µm
E8 BISS-C Absolute + Incremental, 3 Tracks	BISS-C	20 nm	1 Vpp	20 µm	< 0.5 nm
E9 EnDat 2.2 Absolute + Incremental, 3 Tracks	EnDat 2.2	20 nm	1 Vpp	20 µm	< 0.5 nm
E10 SSI Absolute + Incremental, 3 Tracks	SSI	20 nm	1 Vpp	20 µm	< 0.5 nm
E11 HIPERFACE Absolute + Incremental, 3 Tracks	HIPERFACE	20 nm	1 Vpp	20 µm	< 0.5 nm
E12 Custom Options Available

Product Dimensions Add Media Add FormVisualText

G280 Dimensions (mm)	Travel	Hard Stop	A	B	C
G280-IL-x-100	100	116	537	268	250, 400
G280-IL-x-150	150	165	587	293	250, 500
G280-IL-x-200	200	216	637	318	250, 500
G280-IL-x-250	250	266	687	343	250, 500
G280-IL-x-300	300	316	737	368	250, 500
G280-IL-x-400	400	416	837	418	250, 500, 750
G280-IL-x-500	500	516	937	468	250, 500, 750
G280-IL-x-600	600	616	1037	518	250, 500, 750
G280-IL-x-800	800	816	1137	618	250, 500, 750
G280-IL-x-1000	1000	1016	1437	718	250, 500, 750, 1250

Technical Drawings Add Media Add FormVisualText

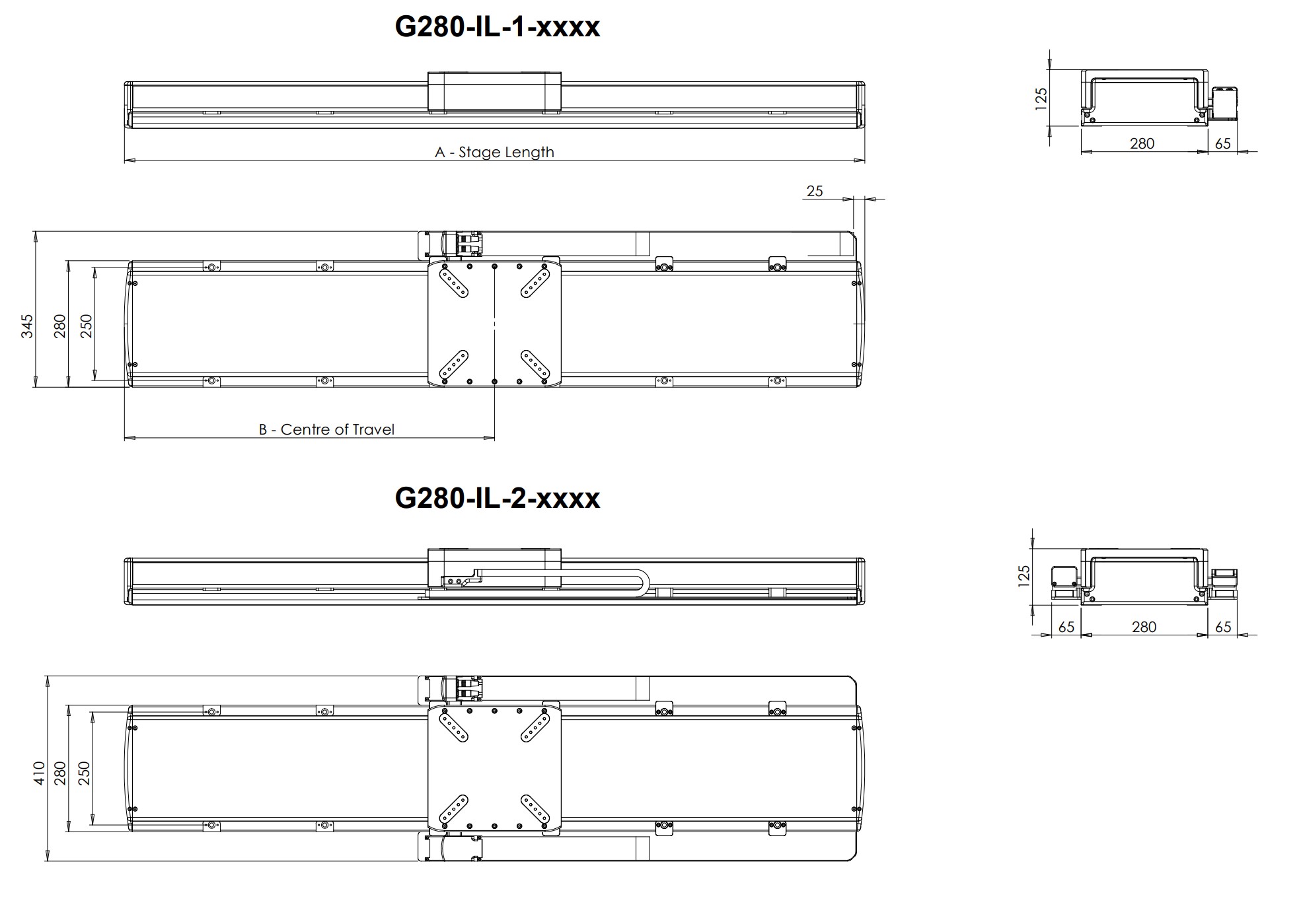

G280-IL-11-Drawing
G280-IL-12-Drawing

Move up Move down Show or hide panel Add Comment No comments yet. Move up Move down Show or hide panel SEO Readability Schema Social Optimise your content for discovery. Focus keyphrase Focus keyphrase Type here Use the main word or phrase you want your content found for across search, AI, and beyond. Learn more about best practices for keyphrases.(Opens in a new browser tab) Discover related keyphrases(Opens in a new browser tab) Search appearance Want an enhanced Google preview of how your WooCommerce products look in the search results? Unlock with Yoast WooCommerce SEO Determine how your post should look in the search results. Google preview Mobile Google preview: Switch to desktop preview. Currently showing mobile preview. Desktop URL preview: Gorman Dynamics dev.gormandynamics.com SEO title preview: G280-IL High Precision Linear Stage | Gorman Dynamics Meta description preview: The G225-IL high precision linear stage offers 225 mm width, travels to 1200 mm, 120 kg payload and 2 m/s speed with a high performance ironless linear … SEO title Insert variable Generate SEO title Title Page Separator Site title Slug g280-il Meta description Insert variable Generate meta description The G225-IL high precision linear stage offers 225 mm width, travels to 1200 mm, 120 kg payload and 2 m/s speed with a high performance ironless linear motor. SEO analysisEnter a focus keyphrase to calculate the SEO score Add related keyphrase Premium Track SEO performance Internal linking suggestions Premium Cornerstone content Advanced Insights

The G280-IL series takes full advantage of ironless linear motor technology. The absence of a ferromagnetic core in the stator eliminates cogging and any interaction between the stator and rotor magnetic fields, producing exceptionally smooth and precise motion. This makes the series well suited to applications where high accuracy and precision are essential. Its compact design and high power density also suit installations where space is limited, from semiconductor manufacturing equipment to medical devices and robotics.

Applications for Linear Stages

Precision linear stages are central to applications demanding high levels of accuracy and repeatability. They are widely used in laser cutting, scanning, digital printing, and electronics assembly and inspection. They also feature in processes such as Automatic Optical Inspection (AOI) and laser micro-machining, where ultra precision and accurate scan motion are required. In medical and scientific equipment, precision linear stages are relied on for accuracy and repeatability across every cycle.

Product Specifications: G280-IL High Precision Linear Stage

G280 Series	G280-IL-x-100	G280-IL-x-150	G280-IL-x-200	G280-IL-x-250	G280-IL-x-300
Travel total (mm)	100	150	200	250	300
Position Accuracy uncalibrated (µm typ)	±4	±6	±8	±9	±10
Position Accuracy calibrated (µm)	±1	±1	±1	±1	±1
Resolution System (nm)	5	5	5	5	5
Repeatability Bi-directional (µm)	±0.3	±0.4	±0.4	±0.4	±0.4
Flatness / Straightness (µm)	±2	±2.5	±2.5	±3	±3
Yaw, Pitch & Roll (µrad)	±25	±30	±35	±40	±45
Maximum Velocity No Load (mm/s)	2000	2000	2000	2000	2000
Maximum Acceleration (m/s²)	30	30	30	30	30
Nominal Force (N)	240	240	240	240	240
Peak Force (N)	1230	1230	1230	1230	1230
Load Capacity (kg)	185	185	185	185	185
Stage Weight (kg)	30.5	35.7	40.9	46.1	51.3

G280 Series	G280-IL-x-400	G280-IL-x-500	G280-IL-x-600	G280-IL-x-800	G280-IL-x-1000
Travel total (mm)	400	500	600	800	1000
Position Accuracy uncalibrated (µm typ)	±12	±14	±15.5	±17	±18
Position Accuracy calibrated (µm)	±1	±1	±1	±1.5	±1.5
Resolution System (nm)	5	5	5	5	5
Repeatability Bi-directional (µm)	±0.4	±0.4	±0.4	±0.5	±0.5
Flatness / Straightness (µm)	±4	±5	±6	±8	±9
Yaw, Pitch & Roll (µrad)	±55	±65	±75	±85	±90
Maximum Velocity No Load (mm/s)	2000	2000	2000	2000	2000
Maximum Acceleration (m/s²)	30	30	30	30	30
Nominal Force (N)	240	240	240	240	240
Peak Force (N)	1230	1230	1230	1230	1230
Load Capacity (kg)	185	185	185	185	185
Stage Weight (kg)	56.5	61.8	67	77.6	88.1

G280 Encoder Feedback Options	Feedback (F1) Absolute	(F1) Signal Period	Feedback (F2) Incremental	(F2) Signal Period	In Position Stability
E1 BISS-C Absolute, Single Track	BISS-C	5 nm			±1 µm
E2 BISS-C Absolute, Single Track	BISS-C	1 nm			±0.5 µm
E3 Incremental 1 Vpp, Single Track			1 Vpp	20 µm	±0.5 nm
E4 Incremental 1 Vpp, Single Track			1 Vpp	4 µm	< 0.5 nm
E5 EnDat 2.2 Absolute, Single Track	EnDat 2.2	10 nm			±1 µm
E6 SSI Absolute, Single Track	SSI	10 nm			±1 µm
E7 HIPERFACE Absolute, Single Track	HIPERFACE	10 nm			±1 µm
E8 BISS-C Absolute + Incremental, 3 Tracks	BISS-C	20 nm	1 Vpp	20 µm	< 0.5 nm
E9 EnDat 2.2 Absolute + Incremental, 3 Tracks	EnDat 2.2	20 nm	1 Vpp	20 µm	< 0.5 nm
E10 SSI Absolute + Incremental, 3 Tracks	SSI	20 nm	1 Vpp	20 µm	< 0.5 nm
E11 HIPERFACE Absolute + Incremental, 3 Tracks	HIPERFACE	20 nm	1 Vpp	20 µm	< 0.5 nm
E12 Custom Options Available

Product Dimensions: G280-IL High Precision Linear Stage

G280 Dimensions (mm)	Travel	Hard Stop	A	B	C
G280-IL-x-100	100	116	537	268	250, 400
G280-IL-x-150	150	165	587	293	250, 500
G280-IL-x-200	200	216	637	318	250, 500
G280-IL-x-250	250	266	687	343	250, 500
G280-IL-x-300	300	316	737	368	250, 500
G280-IL-x-400	400	416	837	418	250, 500, 750
G280-IL-x-500	500	516	937	468	250, 500, 750
G280-IL-x-600	600	616	1037	518	250, 500, 750
G280-IL-x-800	800	816	1137	618	250, 500, 750
G280-IL-x-1000	1000	1016	1437	718	250, 500, 750, 1250
