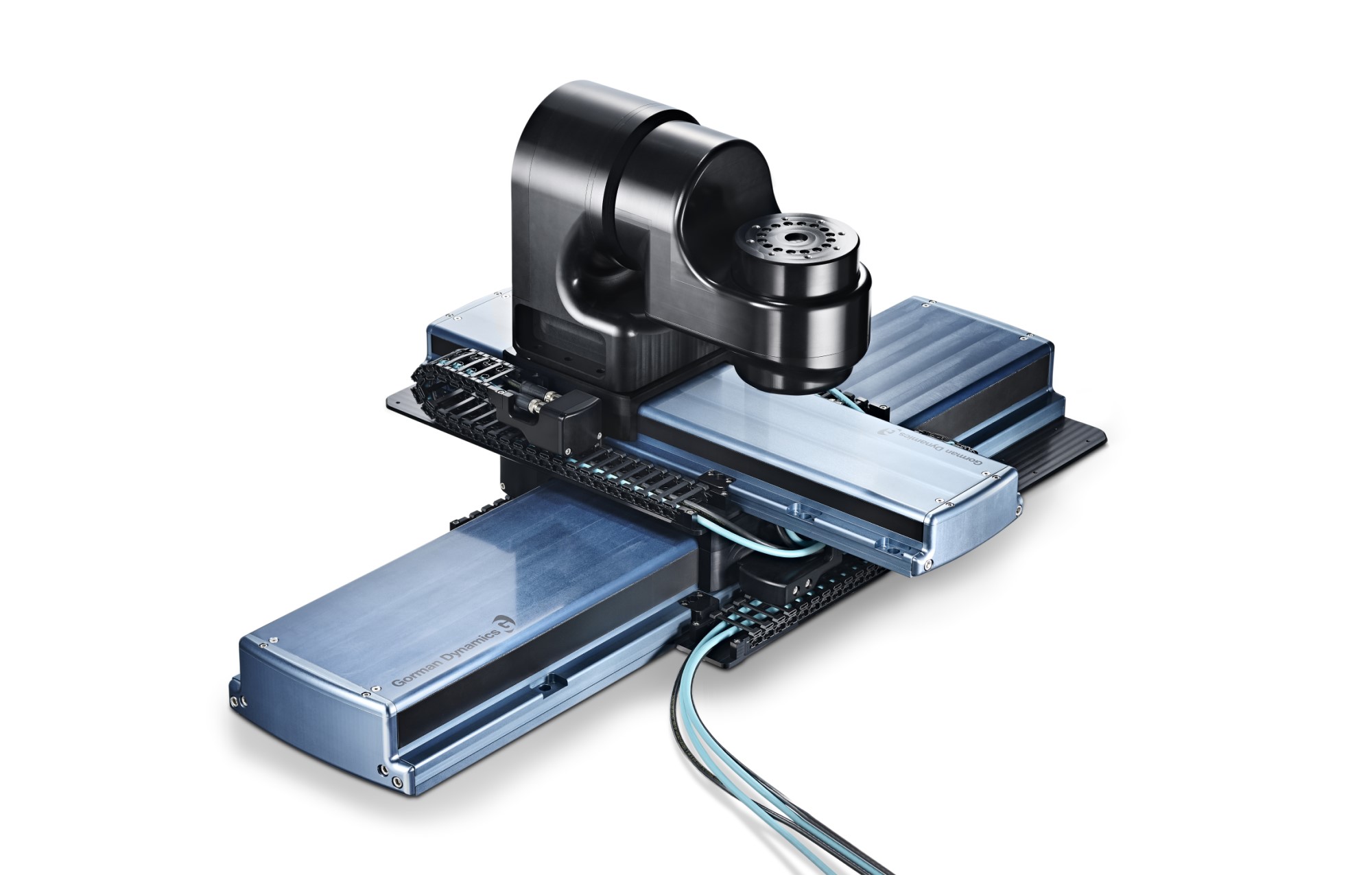

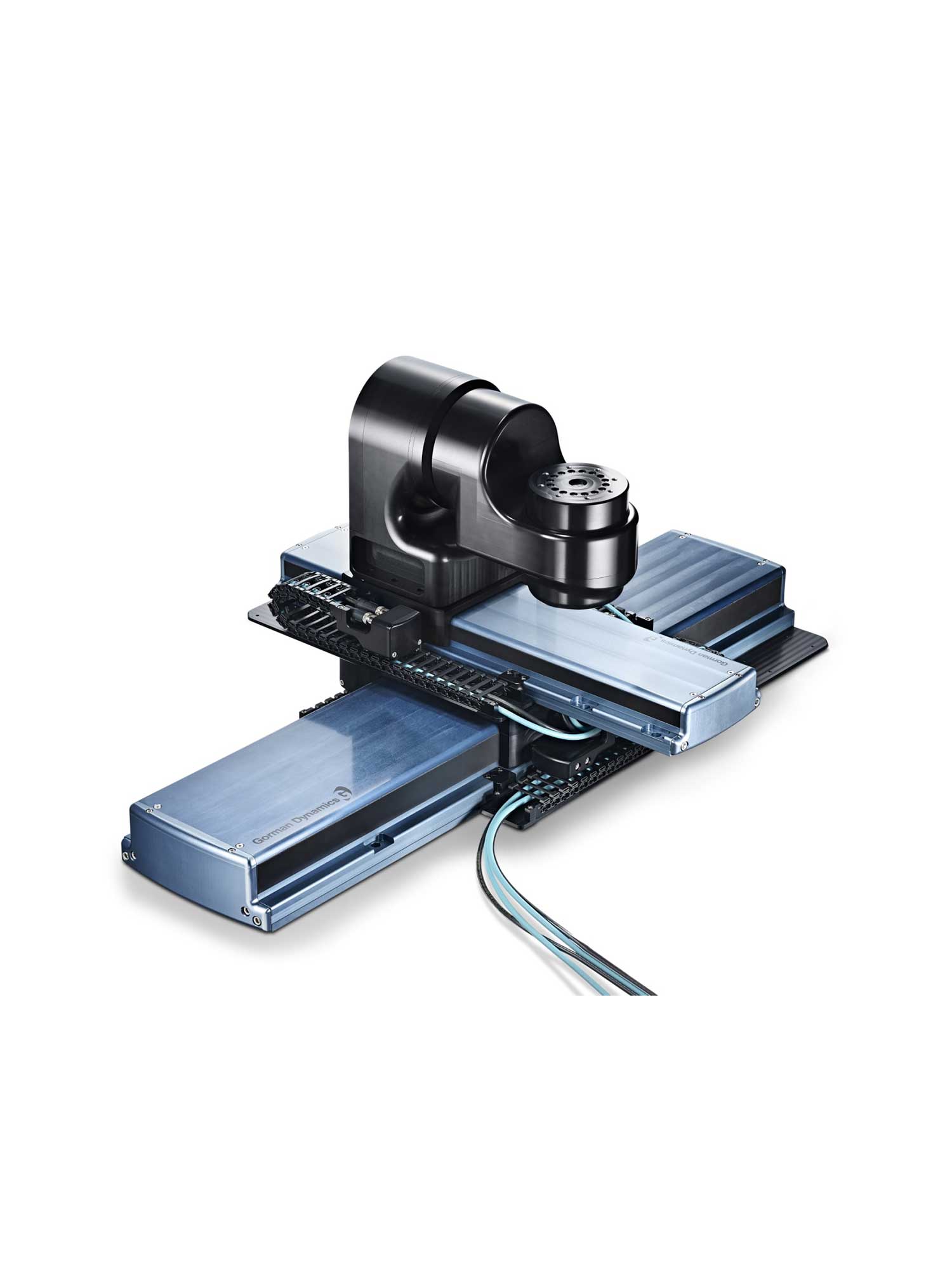

An XY linear stage combined with a two axis gimbal provides precise motion control in two dimensions, allowing intricate positioning and orientation adjustment. This configuration enables simultaneous linear movement along the X and Y axes alongside angular adjustment around two perpendicular axes, offering versatile and accurate motion control for applications requiring multidimensional positioning and alignment, such as optics, imaging and robotics.

Customised Linear Stage Solutions

Gorman Dynamics specialises in supplying multi-axis precision stages tailored to suit your specific needs. Our range includes XY stages, XYZ stages, theta stages and custom multi-axis configurations, all designed to deliver exceptional accuracy, repeatability and smooth motion control. Whether you need high speed scanning, precise alignment or complex multi-axis movement, our precision stages offer reliable and efficient solutions. Contact us to discuss your requirements.

Linear Stage

An XY linear stage is a positioning system that enables precise movement in both the X and Y directions, providing accurate and controlled motion along two perpendicular axes. XY systems are widely used in semiconductor manufacturing, microscopy, laser processing and research laboratories. High accuracy, repeatability and smooth motion make them essential wherever precise positioning, scanning or automated operation is required.

2 Axis Gimbal, Third and Fourth Axis

A two axis gimbal is a versatile motion control system providing precise rotational movement around two perpendicular axes. It allows smooth, coordinated adjustment in both pitch and yaw, enabling accurate orientation control. The configuration is used across tracking systems, optical instrument positioning, imaging and stabilisation applications. Its ability to stabilise and control movement in two axes offers enhanced flexibility and improved stability wherever accurate angular adjustment is required.

Integrated Cable Management

Our multi-axis stages are supplied with robust integrated cable management. Cables are securely routed and organised, minimising clutter and potential damage. This enhances system reliability, simplifies installation and reduces maintenance effort across complex positioning and alignment tasks.

Benefits and Advantages

Precision linear stages offer several key advantages across applications:

• High accuracy: exceptional positioning accuracy for precise movement and alignment, crucial in semiconductor manufacturing, microscopy and optical systems.
• Repeatable performance: consistent, reliable results with every movement, essential for repetitive tasks and precise measurement.
• Smooth motion: stable motion with minimal vibration, enabling careful handling of delicate objects and scanning of sensitive surfaces.
• Flexibility and customisation: configurable travel range, load capacity and mounting options for seamless integration into varied setups.
• High load capacity: substantial loads handled while maintaining accuracy and stability.
• Durability and longevity: high quality materials and engineering for long service life in demanding environments.

By leveraging these advantages, industries achieve precise and accurate positioning, improving efficiency, quality and productivity across a wide range of applications.

Linear Stage Applications

• Semiconductor manufacturing: wafer handling, alignment and inspection processes.
• Microscopy: precise sample positioning and scanning for high resolution imaging and analysis.
• Optical systems: lens positioning, beam alignment and fine tuning of optical setups.
• Metrology: precise measurement, calibration and dimensional analysis.
• Laser processing: laser cutting, engraving and micromachining, ensuring accurate material processing and positioning.
• Research laboratories: materials science, nanotechnology and biotechnology, for precise sample manipulation and experimentation.
• Robotics: accurate positioning, assembly and automation tasks.
• Medical devices: implantable device manufacture, robotics-assisted surgery and diagnostics.
