G165-IL High Precision Linear Stage

High precision ironless linear positioning stage with 165mm width, travel options from 100mm to 1000mm, 50kg payload capacity, 2m/s maximum speed and high resolution absolute encoder feedback.

Product Overview

Motion Type

Linear
Technology

Ironless
Product Range

Precision Linear Stages
Series

G165

Key Performance Specs

  • Minimum Travel: 100 mm
  • Maximum Travel: 1200 mm
  • Continuous Force: 87 mm
  • Maximum Speed: 2 m/s
  • Maximum Payload: 50 kg

Key Features

  • Stage width 165 mm
  • Travel 100 mm to 1000 mm
  • High load capacity: 50 kg / 500 N
  • Maximum speed 2 m/s
  • Nominal force 87 N, peak force 300 N
  • High resolution absolute linear encoder
  • Side cover to protect against particles
  • Ironless linear motor

Request a Quote

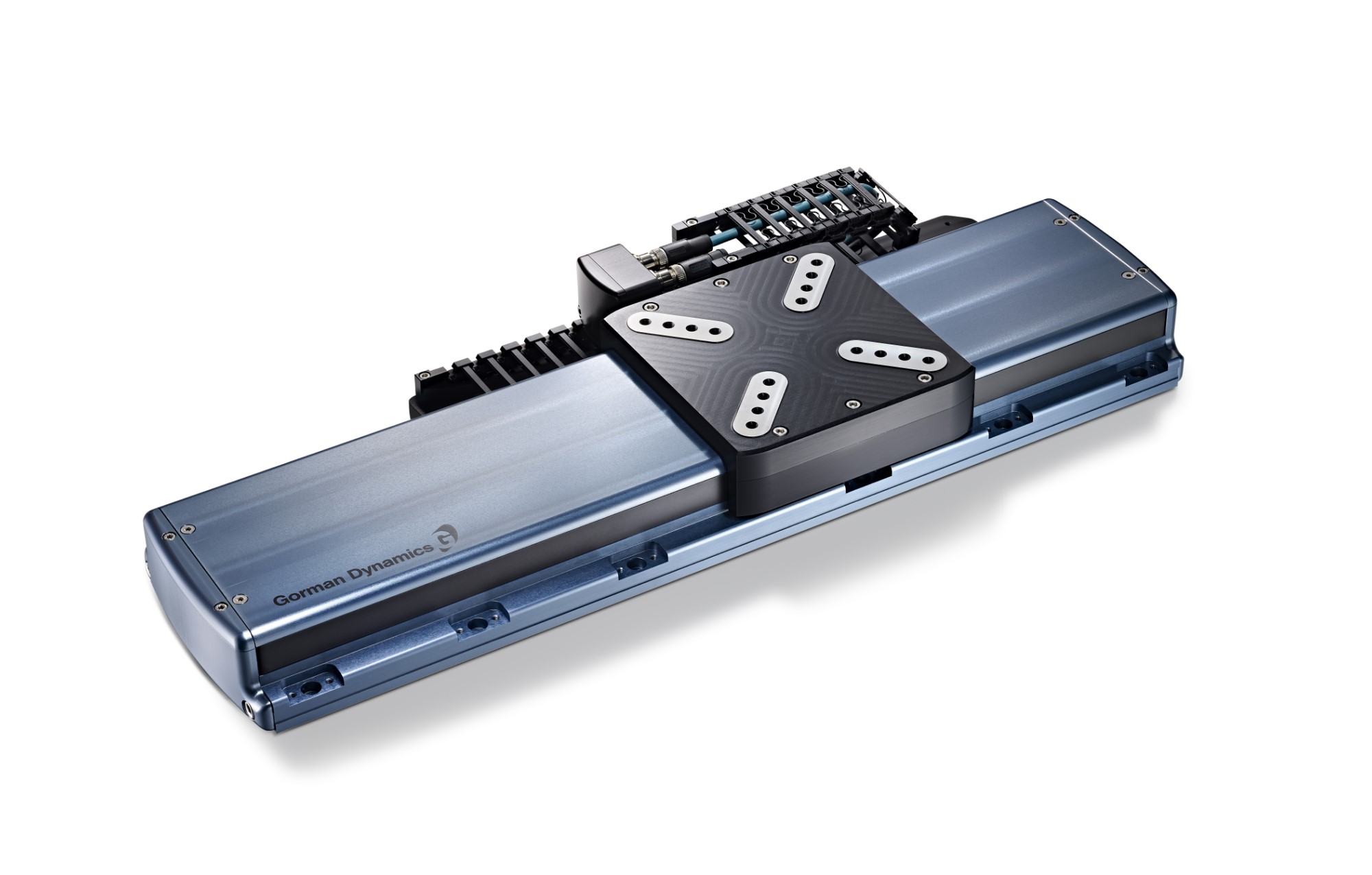

G165-IL High Precision Linear Stage

Positioning Linear Stage

Introducing the G165-IL, the latest high-precision linear stage from Gorman Dynamics. This linear stage is designed to withstand even the most demanding industrial conditions, making it ideal for use in a variety of industries. Its high stiffness and use of high-quality components, such as high-performance ironless linear motors, heavy-duty recirculating ball bearing guides, and precision absolute linear encoders, set it apart from the competition. The G165-IL series stages are optimized with high-precision, non-contact absolute linear encoders that are protected from debris by the stage sealing system. Precision recirculating linear bearings, along with machining and assembly, enable excellent geometric performance specifications. At Gorman Dynamics, we pride ourselves on delivering high-quality, reliable solutions for our clients. The G165-IL is no exception, offering unparalleled precision, durability, and safety for a wide range of industrial applications.

Ironless Linear Motor

The G165-IL Series is a cutting-edge solution that leverages the advantages of ironless linear motors. One of the key benefits of these motors is their high precision and accuracy, which are critical factors in many industrial applications. The absence of a ferromagnetic core in the stator eliminates cogging and any interaction between the stator and rotor magnetic fields. This produces incredibly smooth and precise motion, making it an ideal solution for applications where high accuracy and precision are essential. The G165-IL Series delivers unparalleled performance, making it a reliable and efficient solution for applications requiring a high degree of accuracy and precision. Additionally, its compact design and high power density make it ideal for use in applications where space is limited. Whether it is for semiconductor manufacturing equipment, medical devices, or robotics, the G165-IL Series delivers the precision and accuracy that these industries demand.

Applications for Linear Stages

Precision linear stages play a critical role in various applications that necessitate high levels of accuracy and precision. These stages are frequently utilized in industries such as laser cutting, scanning, digital printing, and electronics assembly and inspection. They are also deployed in processes such as AOI (Automatic Optical Inspection) and laser micro-machining, which demand ultra precision and accurate scan motion. In medical and scientific equipment, precision linear stages are pivotal in ensuring accuracy and repeatability. In any industry or application, utilizing precision linear stages is crucial for achieving desired outcomes and delivering top-quality output.

G165 Series G165-IL-x-100 G165-IL-x-150 G165-IL-x-200 G165IL-x-250 G165IL-x-300
Travel total (mm) 100 150 200 250 300
Position Accuracy uncalibrated (µm typ) ±4 ±6 ±8 ±9 ±10
Position Accuracy calibrated (µm) ±1 ±1 ±1.5 ±1.5 ±4
Resolution System (nm) 5 5 5 5 5
Repeatability Bi-directional (µm) ±0.4 ±0.4 ±0.4 ±0.4 ±0.4
Flatness / Straightness (µm) ±2.5 ±3 ±4 ±5 ±6
Yaw, Pitch & Roll (µrad) ±14 ±14 ±20 ±23 ±29
Maximum Velocity No Load (mm/s) 2000 2000 2000 2000 2000
Maximum Acceleration (m/s2) 30 30 30 30 30
Nominal Force (N) 87 87 87 87 87
Peak Force (N) 300 300 300 300 300
Load Capacity (kg) 50 50 50 50 50
Stage Weight (kg) 8.6 9.7 11.3 11.1 12
G165 Series G165-IL-x-400 G165-IL-x-500 G165-IL-x-600 G165-IL-x-800 G165-IL-x-1000
Travel total (mm) 400 500 600 800 1000
Position Accuracy uncalibrated (µm typ) ±12 ±14 ±15.5 ±17 ±18
Position Accuracy calibrated (µm) ±1.5 ±2 ±2 ±2 ±2
Resolution System (nm) 5 5 5 5 5
Repeatability Bi-directional (µm) ±0.4 ±0.4 ±0.4 ±0.4 ±0.4
Flatness / Straightness (µm) ±8 ±9 ±10 ±12 ±14
Yaw, Pitch & Roll (µrad) ±35 ±40 ±45 ±50 ±60
Maximum Velocity No Load (mm/s) 2000 2000 2000 2000 2000
Maximum Acceleration (m/s2) 30 30 30 30 30
Nominal Force (N) 87 87 87 87 87
Peak Force (N) 300 300 300 300 300
Load Capacity (kg) 50 50 50 50 50
Stage Weight (kg) 13.7 15.3 17 20.3 23.6
G165 Encoder Feedback Options Feedback (F1) Absolute (F1) Signal Period Feedback (F2) Incremental (F2) Signal Period In Position Stability
E1 – BISS-C Absolute – Single Track BISS-C 5 nm +/- 1 µm
E2 – BISS-C Absolute – Single Track BISS-C 1 nm +/- 0.5 µm
E3 – Incremental 1 Vpp – Single Track 1 Vpp 20 µm +/- 0.5 nm
E4 – Incremental 1 Vpp – Single Track 1 Vpp 4 µm < 0.5 nm
E5 – EnDat 2.2 Absolute – Single Track EnDat 2.2 10 nm +/- 1 µm
E6 – SSI Absolute – Single Track SSI 10 nm +/- 1 µm
E7 – HIPERFACE Absolute – Single Track HIPERFACE 10 nm +/- 1 µm
E8 – BISS-C Absolute + Incremental 3 Tracks BISS-C 20 nm 1 Vpp 20 µm < 0.5 nm
E9 – EnDat 2.2 Absolute + Incremental 3 Tracks EnDat 2.2 20 nm 1 Vpp 20 µm < 0.5 nm
E10 – SSI Absolute + Incremental 3 Tracks SSI 20 nm 1 Vpp 20 µm < 0.5 nm
E11 – HIPERFACE Absolute + Incremental 3 Tracks HIPERFACE 20 nm 1 Vpp 20 µm < 0.5 nm
E12 – Custom Options Available

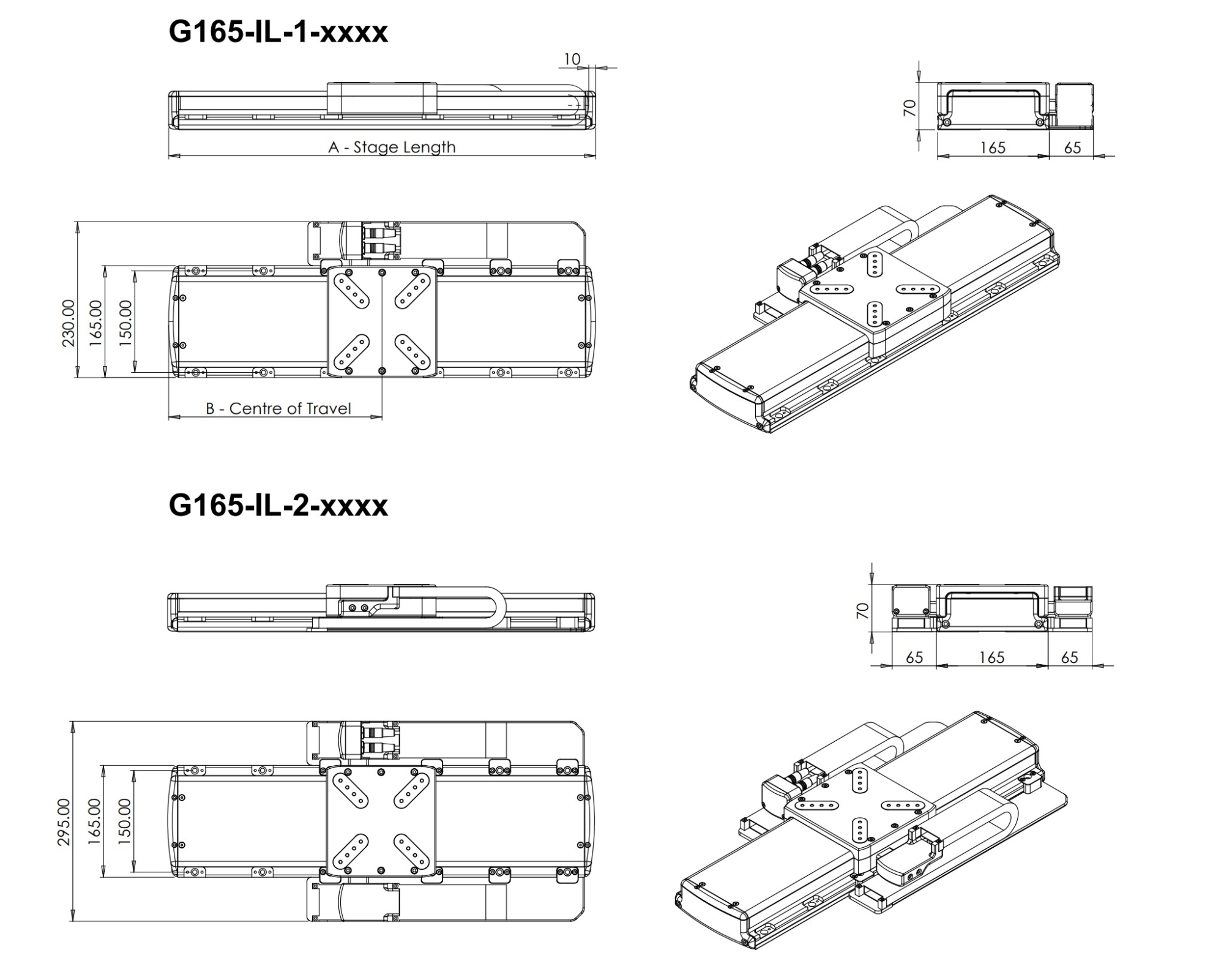

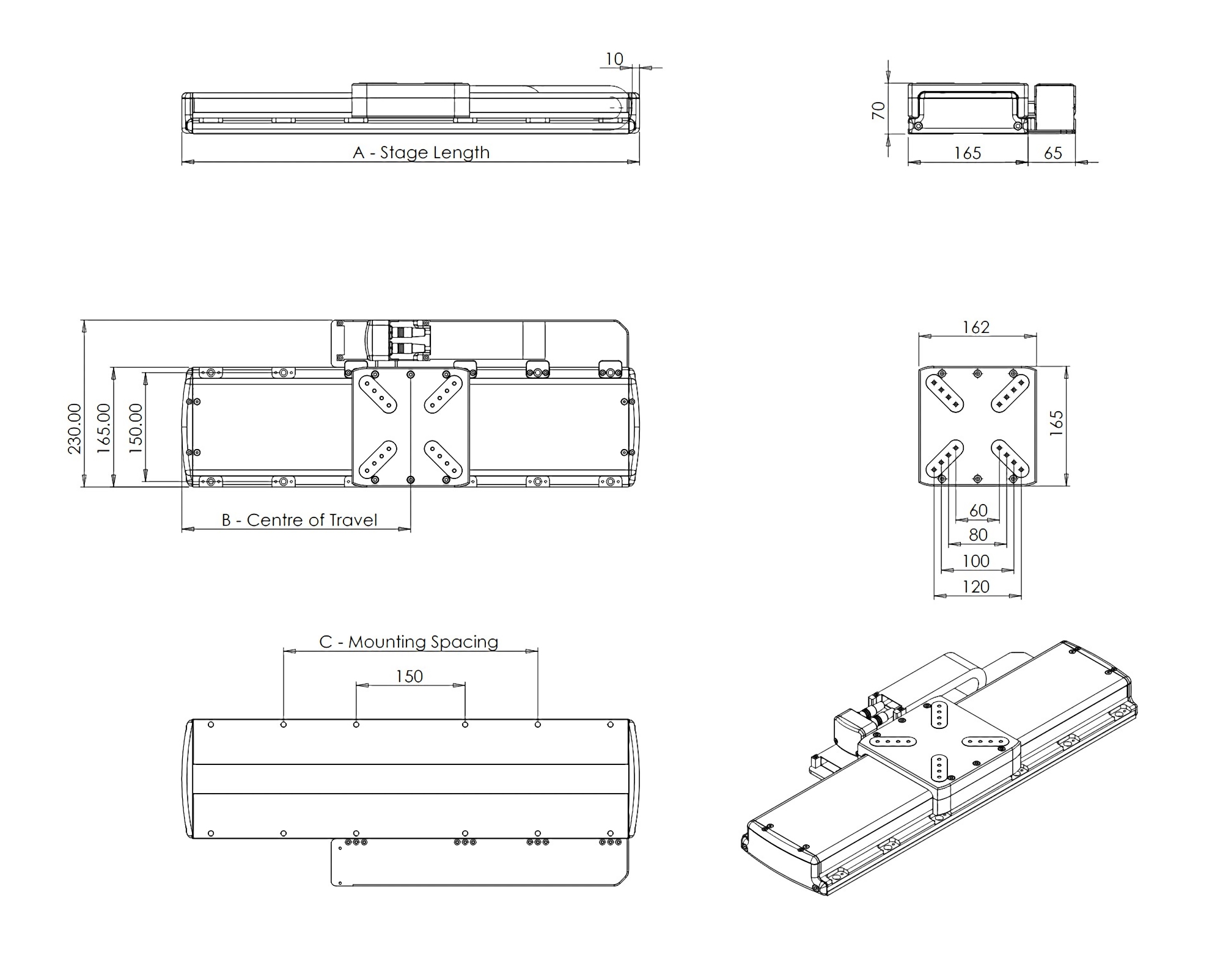

G165 Dimensions (mm) Travel Hard Stop A B C
G165-IL-x-100 100 116 330 165 150
G165-IL-x-150 150 165 380 190 150
G165-IL-x-200 200 216 430 215 150, 350
G165-IL-x-250 250 266 480 240 150, 350
G165-IL-x-300 300 316 530 265 150, 350
G165-IL-x-400 400 416 630 315 150,350, 550
G165-IL-x-500 500 516 730 365 150,350, 550
G165-IL-x-600 600 616 830 415 150,350, 550, 750
G165-IL-x-800 800 816 1030 515 150,350, 550, 750, 950
G165-IL-x-1000 1000 1016 1230 615 150,350, 550, 750, 950, 1150
