G115-B/5 Precision Ball-Screw Stage

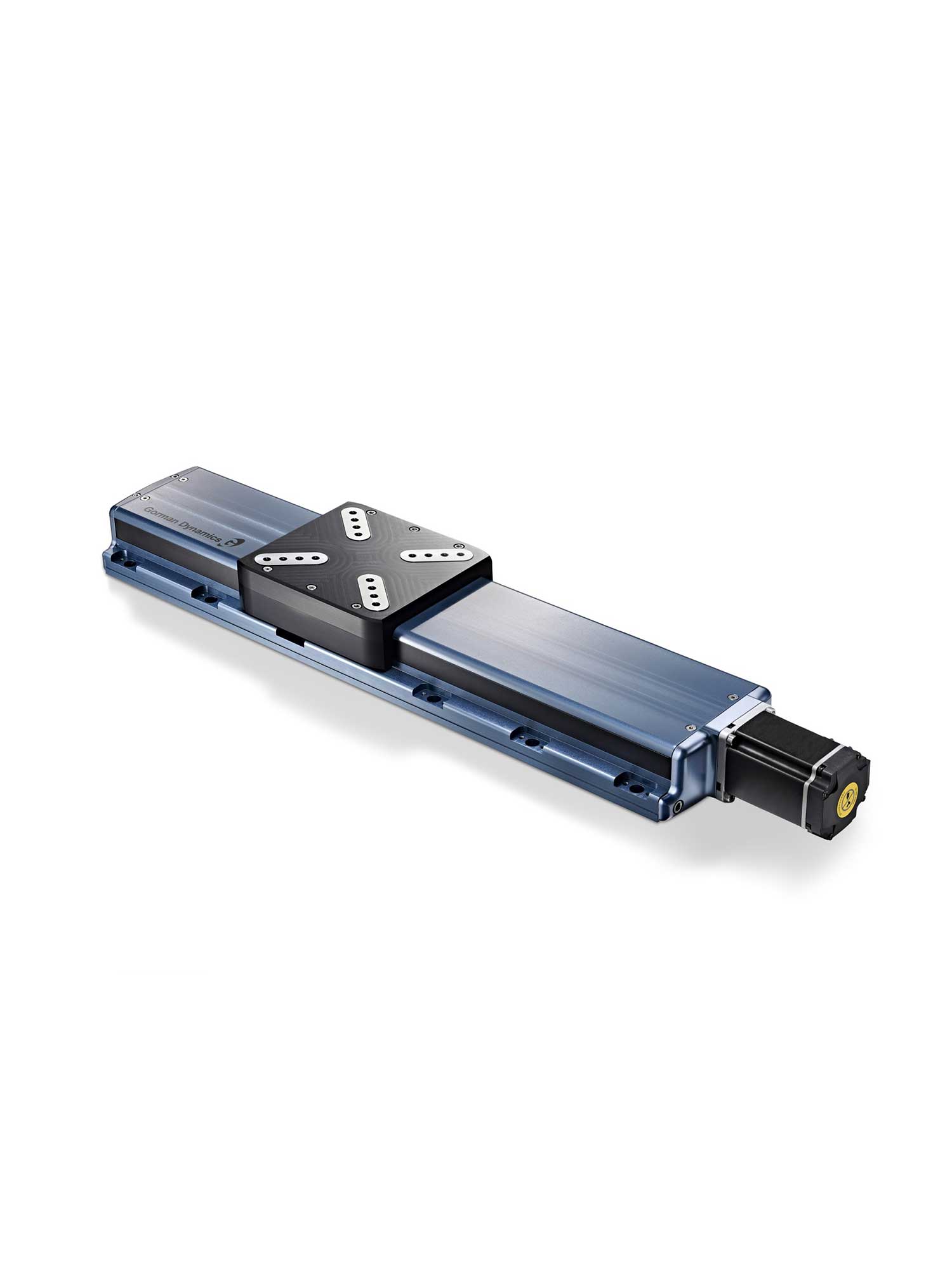

The G115-B/5 is a precision ball-screw linear stage with a 115 mm width, offering travels from 50 mm to 400 mm and a 42 kg load capacity. A high precision ball-screw drive delivers speeds to 500 mm/s, with a choice of multi-turn absolute or incremental encoder feedback and an optional motor brake.

Product Overview

Motion Type	Linear
Technology	Ball-Screw
Product Range	Precision Linear Stages
Series	G115

Key Performance Specs

Minimum Travel: 50 mm
Maximum Travel: 400 mm
Maximum Speed: 0.5 m/s
Maximum Payload: 42 kg

Key Features

Width 115 mm
Travels 50 mm to 400 mm
High load capacity 42 kg
Speed 500 mm/s
High resolution multi-turn absolute encoder, or incremental 1024, 2048 and 2500 line options (1 Vpp and TTL)
Optional motor brake
Side cover to protect against particles
Precision ball-screw drive

Request a Quote

G115-B/5 Precision Ball-Screw Stage

Positioning Linear Stage

The G115-B/5 is a high precision ball-screw linear stage with a 115 mm width, designed to withstand demanding industrial conditions across a wide range of sectors. As the most compact model in the range, it is ideal where space is limited. High stiffness and quality components, including a high precision ball-screw, heavy duty recirculating ball bearing guides and a motor fitted with a high resolution multi-turn absolute rotary encoder, set it apart. The ball-screw is protected from debris by the stage sealing system, while precision recirculating linear bearings, combined with careful machining and assembly, deliver excellent geometric performance.

Applications for Linear Stages

Precision linear stages are central to applications demanding high levels of accuracy and repeatability. They are widely used in laser cutting, scanning, digital printing, and electronics assembly and inspection. They also feature in processes such as Automatic Optical Inspection (AOI) and laser micro-machining, where ultra precision and accurate scan motion are required. In medical and scientific equipment, precision linear stages are relied on for accuracy and repeatability across every cycle.

Product Specifications: G115-B/5 Precision Ball-Screw Stage

G115 Series	G115-B/5-50	G115-B/5-100	G115-B/5-150	G115-B/5-200	G115-B/5-300
Travel total (mm)	50	100	150	200	300
Position Accuracy uncalibrated (µm typ)	±6	±6	±8	±8	±10
Position Accuracy calibrated (µm)	±1.0	±1.25	±1.5	±1.75	±2.5
Resolution System (µm)	0.05 – 1.0	0.05 – 1.0	0.05 – 1.0	0.05 – 1.0	0.05 – 1.0
Repeatability Bi-directional (µm)	±0.5	±0.5	±0.5	±0.5	±0.5
Flatness / Straightness (µm)	±1.5	±2.5	±3	±4	±6
Yaw, Pitch & Roll (µrad)	±14	±17	±23	±32	±47
Maximum Velocity No Load (mm/s)	500	500	500	500	500
Load Capacity (kg)	42	42	42	42	42
Stage Weight (kg)	4.2	4.6	5.0	5.8	6.6

G115 Series	G115-B/5-400
Travel total (mm)	400
Position Accuracy uncalibrated (µm typ)	±12
Position Accuracy calibrated (µm)	±3.0
Resolution System (µm)	0.05 – 1.0
Repeatability Bi-directional (µm)	±0.5
Flatness / Straightness (µm)	±8.0
Yaw, Pitch & Roll (µrad)	±60
Maximum Velocity No Load (mm/s)	500
Load Capacity (kg)	42
Stage Weight (kg)	7.4

G115 Series	Motor and Encoder Options G115-B/5-xxx-E?-B?
E1	High resolution multi-turn absolute encoder
E2	1024 line incremental encoder
E3	2048 line incremental encoder
E4	2500 line incremental encoder
B0	No Brake
B1	With Brake

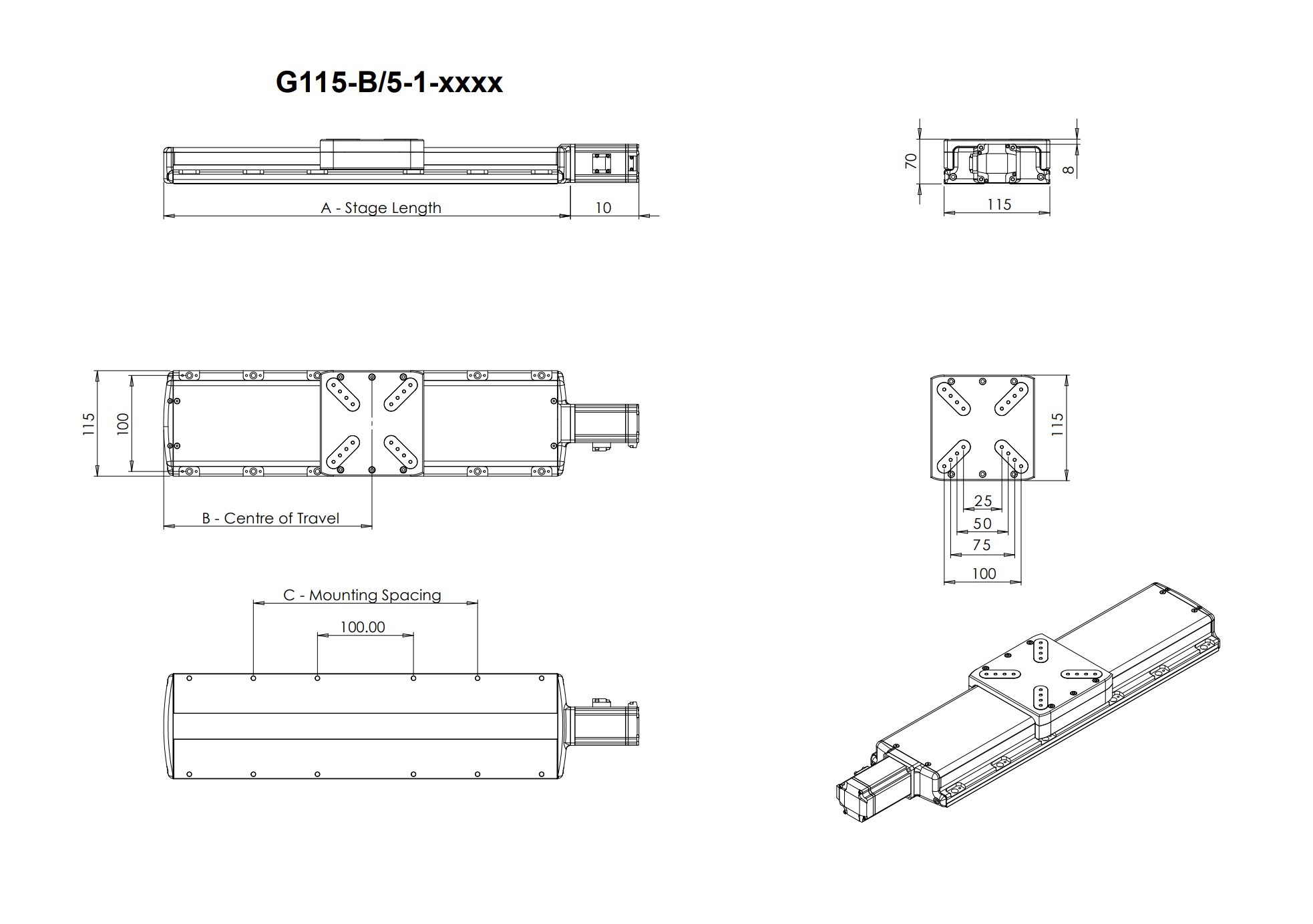

Product Dimensions: G115-B/5 Precision Ball-Screw Stage

G115 Dimensions (mm)	Travel	Hard Stop	A	B	C
G115-B/5-x-50	50	116	288	148	100
G115-B/5-x-100	100	165	338	173	100, 200
G115-B/5-x-150	150	216	388	198	100, 200
G115-B/5-x-200	200	316	438	223	100, 200, 300
G115-B/5-x-300	300	416	538	273	100, 200, 300, 400
G115-B/5-x-400	400	316	638	323	100, 200, 300, 400, 500
