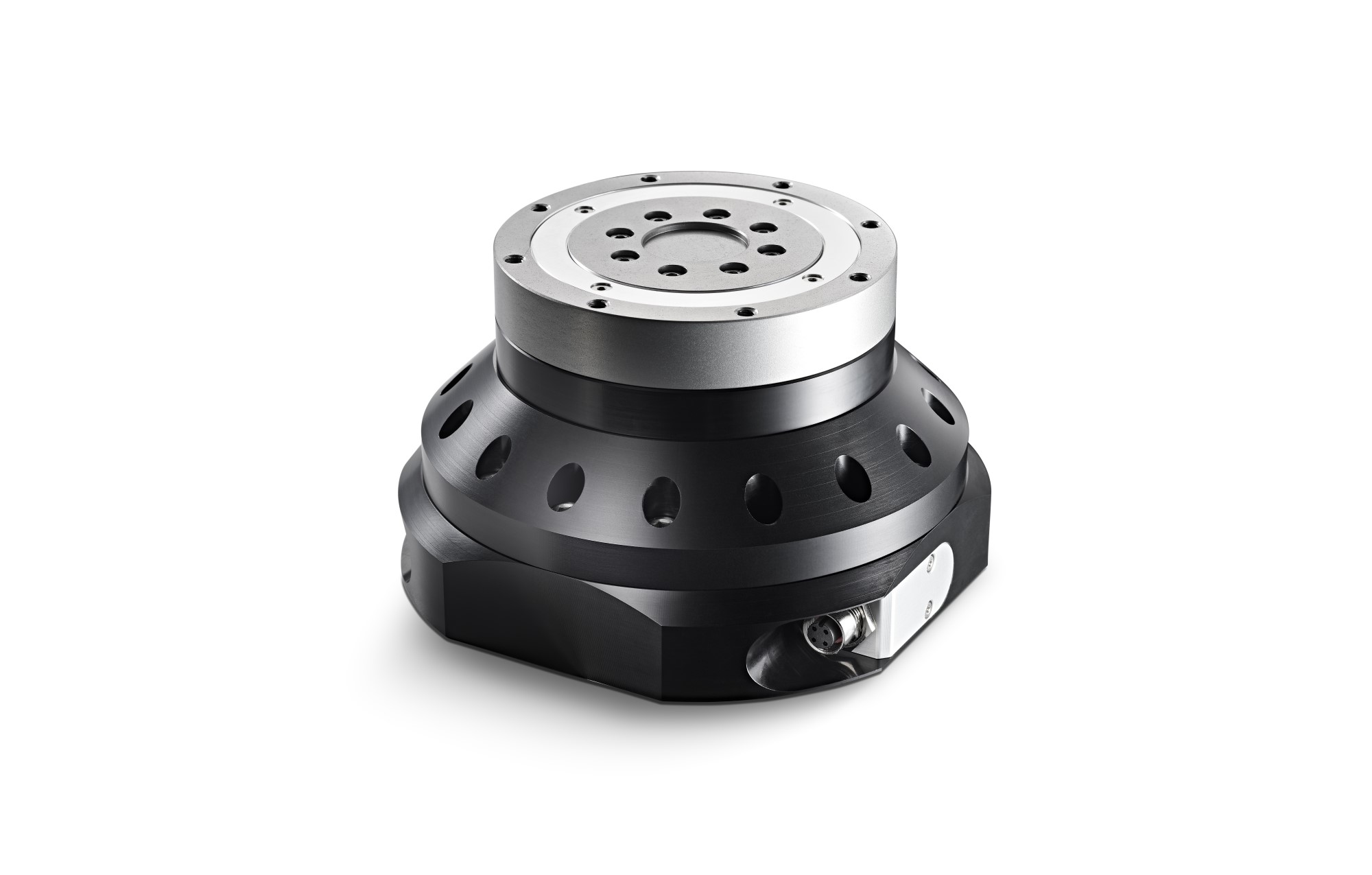

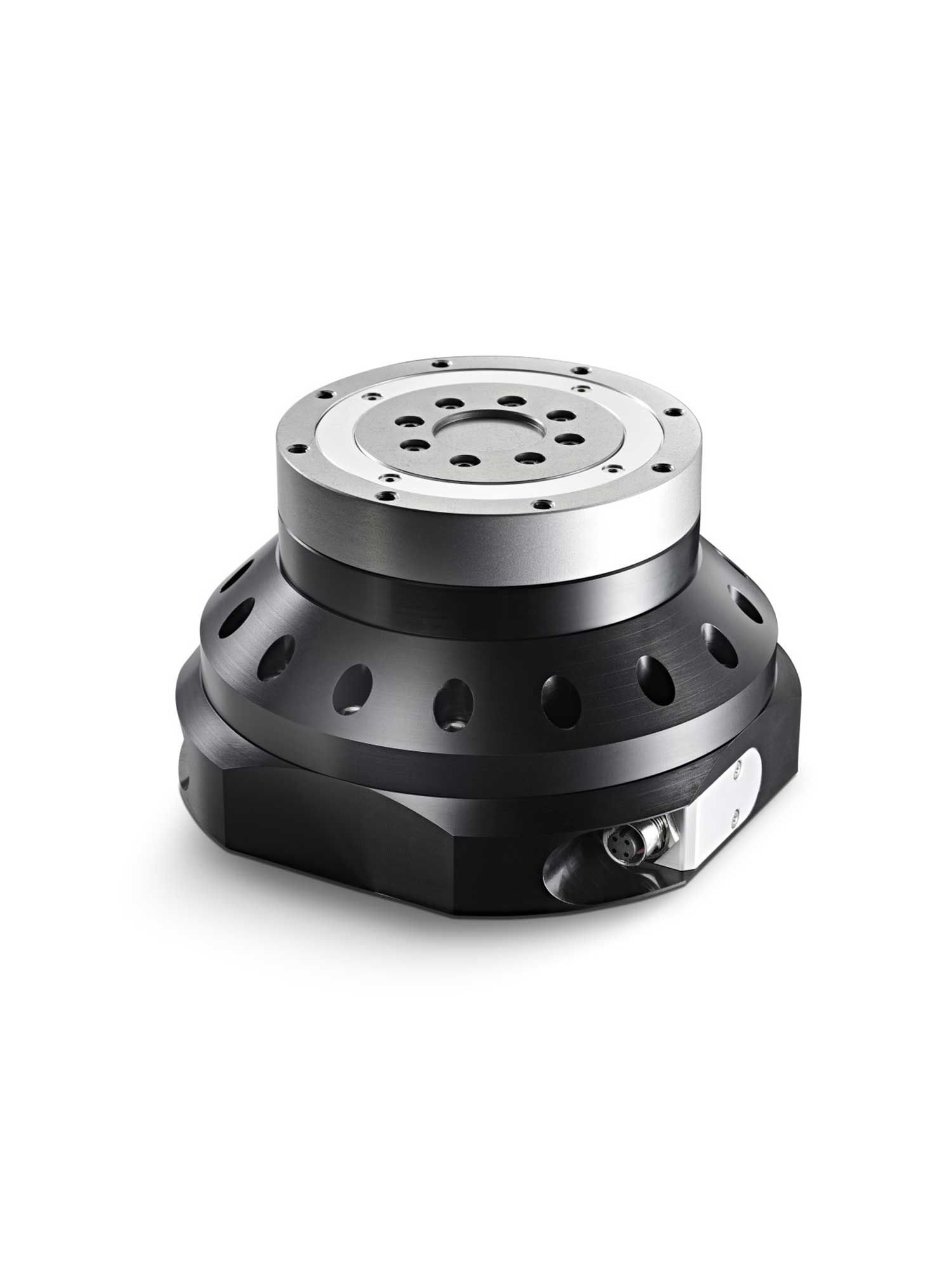

TH35 160 Precision Rotary Stage
Direct drive precision rotary stage with a 115 mm rotating face, stiff cross roller bearings, high resolution absolute multi-turn encoder feedback, 26 kg axial load capacity and endless rotation at up to 1500 rpm.
Product Overview
| Motion Type | Rotary |
|---|---|
| Technology | Frameless Torque |
| Product Range | Precision Rotary Stages |
| Series | TH35 |
Key Performance Specs
- Maximum Payload: 26 kg
- Continuous Torque Up To: 7.57 Nm
- Speed Up To: 1500 rpm
Key Features
- Direct drive rotary
- Rotating face diameter 115 mm
- Load capacity 26 kg axial, 14 kg radial
- Stiff high precision cross roller bearings
- High resolution absolute multi-turn rotary encoder
- Max speed 1500 rpm, endless rotation
- Nominal torque 7.57 Nm
- Calibrated accuracy ±2.5 arc sec
Product Specifications: TH35 160 Precision Rotary Stage
| TH35 Series | TH35-160 |
| Rotating Face diameter (mm) | 115 |
| Position Accuracy uncalibrated (arc sec) | ±20 |
| Position Accuracy calibrated (arc sec) | ±2.5 |
| Resolution System (arc sec) | 0.02 |
| Repeatability Bi-directional (arc sec) | ±1.5 |
| Max Axial Load (kg) | 26 |
| Max Radial Load (kg) | 14 |
| Error Axial Motion (µm) | 2 |
| Error Radial Motion (µm) | 3 |
| Error Tilt Motion (arc sec) | 8 |
| Maximum Velocity No Load (rpm) | 1500 |
| Nominal Torque (Nm) | 7.57 |
| Stage Weight (kg) | 3.6 |

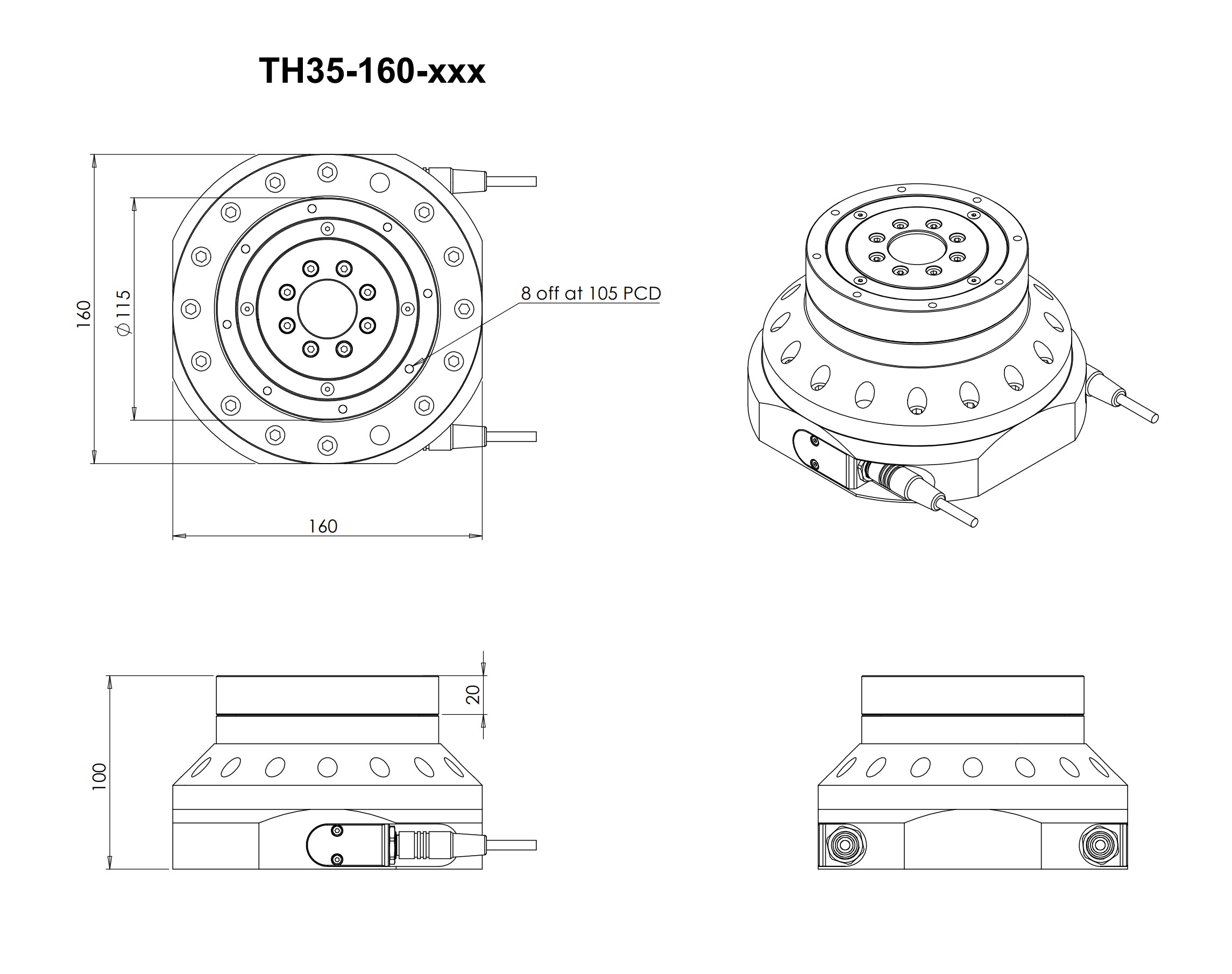

Product Technical Drawings: TH35 160 Precision Rotary Stage
